雷射设备领导品牌,提供客户全方位的解决方案

E&R keep focus on develop new equipment for Semiconductor by using leading technology in Laser and Plasma, providing higher quality, higher accuracy and higher flexibility products, co-work and customize different demands with user to fulfill dreams.

E&R focus on Wafer level equipment with 3nm accuracy as target, investing more R&D resource to processing more high-tech future, also enhancing Substrate level equipment more fit to user need, more accurate marking accuracy, smaller layout and CIM solutions

E&R Plasma technology not only provide RF solution but also Microwave, both In-line, Batch Type, wafer form, also providing Plasma Service to customers

Welcome to contact us to learn more information, we are happy to fulfill your need


一直以来,E&R持续坚持用最严谨的态度,最专业的技术能力以及市场的雷射领导品牌开发半导体设备,提供给使用者最好的操作享受。

不管是在雷射加工处理,电浆技术能力发展,都朝着提供高品质,高精准度,高弹性的高度客制化能力最为最高标准,期许着提供每一位使用者”美梦成真”的权利。

近年来,E&R投入更多的研发能力,兴建新厂房提供更适合制作高精度设备环境制造Wafer Level 晶圆等级的技术能力,同时也更精进在Substrate Level的设备,更好的throughput, 更高的打印精度,更小的体积以及更多的选配项目

E&R电浆技术不仅只提供传统RF的解决方案,更增加了微波, In-line, 腔体式,以及晶圆等级的处理,也提供客户更多研发的可能性。

我们欢迎您随时与我们联络,了解更多资讯以及更多可能性!

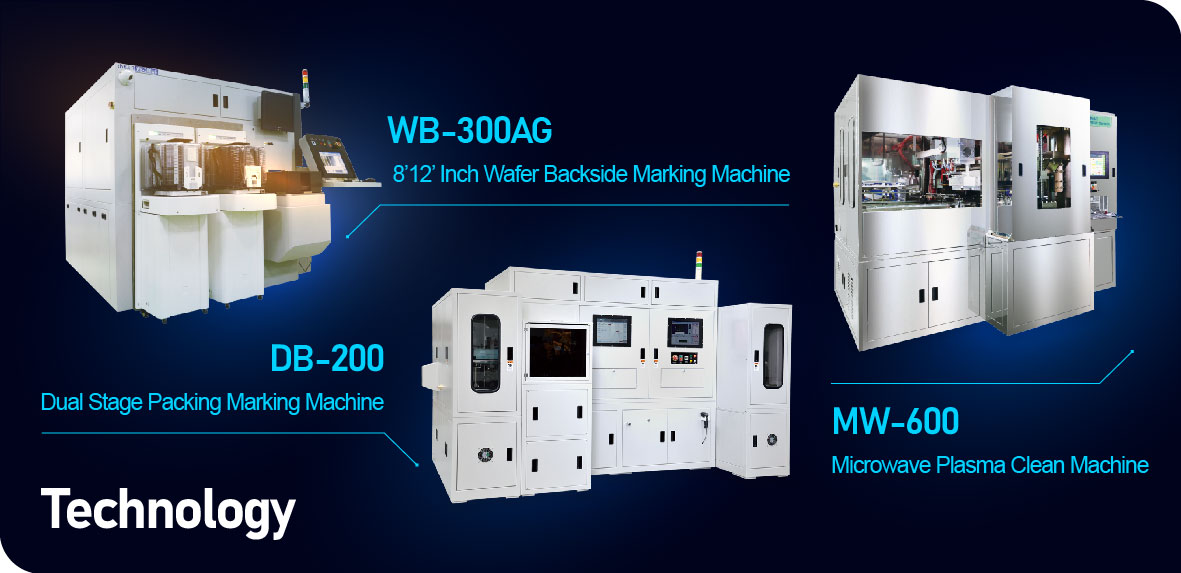

E&R WB-300AG 8’12’ Inch Wafer Backside Marking Machine



E&R DB-200 Dual Stage transferring Packing Marking Machine


MW-600 Microwave Plasma Clean Machine
